Create and use a bar chart

A bar chart is created by displaying a string field on the y-axis and a count, number field, or rate/ratio field on the x-axis. The length of each bar represents the value of each category.

Bar charts can answer questions about data, such as: How are numeric values distributed or summarized by category? How is the data ranked?

Example

An insurance company is reviewing the types of policies it offers to compare to the findings from a recently completed market research project. The first step in the review is to determine the total value of policies in each policy class. You can use a bar chart to visualize the sum of total insured values (TIV) for each policy class.

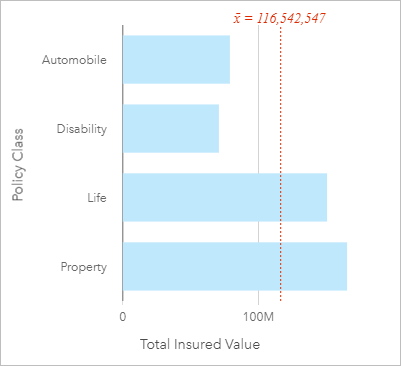

The bar chart above provides a sum of the TIV for each category of insurance policy: disability, automobile, life, and property. When the chart is sorted in ascending order, you can see the highest and lowest values.

The insurance company is especially interested in expanding its business in five cities of interest. The Subgroup field can be used to compare the TIV for each policy class across cities.

The grouped bar chart above shows the distribution of subgroups for each category. The Policy Class values (property, life, disability, and automobile) have subgroups that show a different colored bar for each city that's included in the card filter.

Create a bar chart

To create a bar chart, complete the following steps:

1. Select one of the following combinations of data:
   • One or two string fields
   • One or two string fields and a number field or a rate/ratio field

   Note:

   If you do not select a number or rate/ratio field, the data will be aggregated and a count will be displayed.

   You can search for fields using the search bar in the data pane.

2. Create the chart using the following steps:
   1. Drag the selected fields to a new card.
   2. Hover over the Chart drop zone.
   3. Drop the selected fields on Bar Chart.

Tip:

You can also create charts using the Chart menu above the data pane or the Visualization type button on an existing card. For the Chart menu, only charts that are compatible with the data selection will be enabled. For the Visualization type menu, only compatible visualizations (including maps, charts, or tables) will be displayed.

Usage notes

This visualization creates a result dataset in the data pane, which includes the fields used to create the chart. The result dataset can be used to create additional visualizations, rename the fields on the chart axes or in the pop-ups, or apply filters to the chart.

You can symbolize the value of each bar as a count of features in each category on the y-axis or as a number or rate/ratio field. If you use a field, the bar values can be calculated as a sum, minimum, maximum, average, percentile, or median of values from the field for each category.

Note:

Median and percentile are not available for certain remote feature layers. If the remote feature layer does not support median or percentile, you can copy the layer to your workbook.

You can optionally select the Subgroup field on the y-axis. The Subgroup field must be a string field and is used to divide each category on the y-axis into subcategories.

Tip:

You can style related maps with the same field you used to group the chart. When you interact with the chart or map, you can see simultaneous categorical and spatial patterns.

Use the Layer options button to open the Layer options pane and do the following to update the configuration options:

• Use the Legend tab to view the symbols on the chart. The pop-out legend button displays the legend as a separate card on the page. You can use the legend to make selections on the chart (available for unique symbols).

  To change the color associated with a value, click the symbol and choose a color from the palette or provide a hexadecimal value. Changing the symbol on the Legend tab is only available for unique symbols.

• Use the Symbology tab to change the Symbol type value to Unique symbols and to turn labels on or off. The Symbology tab is not available if the chart has a subgroup field specified.

  Labels display the number values associated with the chart. The following configurations are available for labels:
  • Decimal places—You can choose a number of decimal places from zero to five, or choose Default or Auto for the labels. The Default option abbreviates large numbers, and the Auto option assigns an appropriate precision.
  • Label alignment—Four alignment options are available for bar charts: Horizontal, outside, Horizontal, inside, Vertical, outside, and Vertical, inside.
  • Context label—Characters, such as a symbol or unit, can be added to the label. The context label can be placed on either side of the value.

• Use the Appearance tab to change the symbol color (single symbol only), outline color, and representation on the chart.

  The chart representation can be changed between the Bars and Lollipops options. Bars are preferred for representing values precisely. Lollipops may be preferred for charts with a large number of values or when all values are near the maximum.

Use the Chart statistics button to display the average, median, upper quartile, lower quartile, or a custom value.

Use the Card filter button to remove any unwanted data from the card, or to show only the top or bottom n values. Filters can be applied to all string, number, rate/ratio, and date/time fields. A card filter does not affect other cards using the same dataset.

Use the Selection tools button to select features on the chart using the single select and box select tools, or invert the selection.

Use the Visualization type button to switch directly between a bar chart and other visualizations, such as a summary table, bubble chart, or line graph.

Use the Sort button to sort the categorical data in ascending or descending order by the numeric variable, alphabetically, or manually. If you choose Sort manually, you can click and drag bars to a new position on the chart. Click Apply to apply the changes, or click Cancel to return to the previous order.

Note:

Charts on a published report use the same default sorting style that was used when the report was published. Sort manually is called Predefined and manual sorting is not available to viewers. Charts that were sorted in ascending, descending, or alphabetical order when published do not have a Predefined sorting option.

Use the Maximize button to enlarge the card. Other cards on the page will be reduced to thumbnails. The card can be returned to its previous size using the Restore down button .

Use the Enable cross filters button to allow filters to be created on the card using selections on other cards. Cross filters can be removed using the Disable cross filters button .

Use the Flip card button to view the back of the card. The Card info tab provides information about the data on the card, the Export image tab allows users to export an image of the card, and the Export data tab allows users to export the data from the card.

Use the Card options button to access the following options:

• Appearance button —Change the background color, foreground color, and border of the card.
• Edit labels button —Create custom labels for the chart axes. To edit the labels, click the Edit labels button and click the axis to make it editable.
• Order button —Move the card forward or move the card backward relative to other cards on the page.
• Delete button —Remove the card from the page. If you did not intend to delete the card, you can retrieve it using the Undo button .
