OSM Vector Basemaps system requirements for ArcGIS Data Appliance 2025

The following software components and prerequisites are required before you deploy OSM Vector Basemaps for ArcGIS Data Appliance 2025:

• ArcGIS Pro Basic, Standard, or Advanced 3.3 or later.
• An ArcGIS Enterprise 10.9.1, 11.1, 11.2, or 11.3 deployment meeting the base ArcGIS Enterprise deployment specifications.

  Note:

  ArcGIS Data Appliance 2025 is the last release that will include support for ArcGIS Server 10.9.1.

  Note:

  Authentication exclusions—The Linux public key infrastructure (PKI) configuration is not supported.

Before you start

Before you begin your deployment, do the following:

1. Check with your portal administrator to verify or request the following:
   • A Portal for ArcGIS account with the Publisher or Administrator role enabled.
   • A named user license enabled for ArcGIS Pro Standard or Advanced.
   • The following minimum available space per .vtpk file on your Enterprise 10.9.1, 11.1, 11.2, or 11.3 portal content directory:

     Vector Tile Package .vtpk file	Minimum total available space required	Hosting server's job directory available space required	Hosting server's cache directory available space required
     OSM_Vector_Basemap_DA2025_Install.vtpk (WMA)	128 GB	64 GB	64 GB
     OSM_Vector_Basemap_GCS_DA2025_Install.vtpk (WGS84)	128 GB	64 GB	64 GB
     OSM_Vector_Basemap_DAWB2025_Install.vptk (WMA)	16 GB	8 GB	8 GB

2. Check with your ArcGIS Server administrator to verify or request the following:
   • The following minimum available space per .vtpk file on your ArcGIS Server machine:

     Vector Tile Package .vtpk file	Minimum total available space required (Enterprise 10.9.1, 11.1, 11.2, 11.3)
     OSM_Vector_Basemap_DA2025_Install.vtpk (WMA)	128 GB
     OSM_Vector_Basemap_GCS_DA2025_Install.vtpk (WGS84)	128 GB
     OSM_Vector_Basemap_DAWB2025_Install.vptk (WMA)	16 GB

   • Enough pooling time for ArcGIS Server. Successfully publishing a large .vtpk file as a hosted vector tile service requires more time for the web client to communicate with ArcGIS Server. Check with your ArcGIS Server administrator to confirm that the The maximum time a client can use a service option is set to 43,200 seconds.
   • Complete the following steps for ArcGIS Server 10.9.1, 11.1, 11.2, or 11.3:

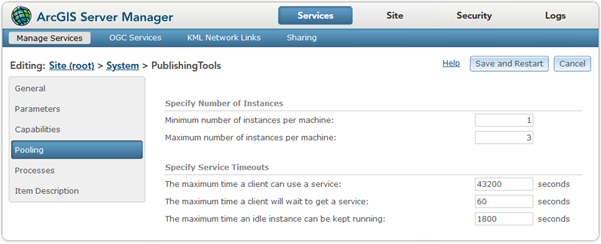

     1. Open a new browser and access ArcGIS Server Manager, for example, https://PORTALNAME/server/manager, and sign in.
     2. Click Site (root) > System > PublishingTools.
     3. Click Pooling, and under Specify Service Timeouts, change the value for The maximum time a client can use a service to 43200 seconds (12 hours).



     4. Click Save and Restart.
     5. Sign out of ArcGIS Server Manager.

   ArcGIS Data Appliance 2025: OSM Vector Basemaps vector tiles, styles, and style publishing tools can be downloaded from My Esri. It can also be delivered on a USB flash drive.

3. Download all the OSM Vector Basemaps files from My Esri, or copy all contents of the USB flash drive to your local computer. Ensure that your local computer has enough storage space to download the files. The additional storage space required for the local staging path is equal to the size of the .vtpk file being shared to your portal.

   Note that all files must be downloaded from My Esri before unzipping. Unzip the first file with 7-Zip software (free from www.7-Zip.org), and the rest will automatically unzip with it.
