Set up OSM Vector Basemaps (existing user)

Follow the workflows below to update OSM Vector Basemaps in WMA for ArcGIS Data Appliance 2025.

Note:

To use OSM Vector Basemaps in the GCS format, complete the steps using the information for GCS.

To use OSM Vector Basemaps: Basic (WMA) included with the World Basic (WB) product option, complete the steps using the information for WB.

For information about what's included with OSM Vector Basemaps, see OSM Vector Basemaps content and What's new.

You'll use the following workflow to update OSM Vector Basemaps:

1. Upload the package to your ArcGIS Enterprise portal
2. Publish the new hosted tile layer (service)

   Note:

   The title of the new hosted tile layer must be different than the title of the existing hosted tile layer (for example, the name of the new layer is OSM_Vector_Basemap_DA2025_v2).

3. Replace the existing hosted tile layer (service) with the new hosted tile layer
4. Update existing tile layers (map styles)
5. Publish new tile layers (map styles)
6. Share tile layers (map styles)

Upload the package to your ArcGIS Enterprise portal

First, you must download all the OSM Vector Basemaps files from My Esri and unzip them or copy the entire USB flash drive contents to your local computer if you have not already done so. Note that all files must be downloaded from My Esri before unzipping. Unzip the first file with 7-Zip software (free from www.7-Zip.org), and the rest will automatically unzip with it. Review the system requirements to confirm that you can deploy the OSM Vector Basemaps update.

1. Start ArcGIS Pro, sign in to your ArcGIS Enterprise portal, click the Options button , and click Set As Active Portal.



   Note:

   You must sign in and connect to your portal before you proceed. You cannot enter your portal username and password when using the Share Package tool later in these instructions. The tool obtains your credentials from ArcGIS Pro.

2. Create a project.
3. Click the Analysis tab, and click Tools in the Geoprocessing group.



   The Geoprocessing pane appears.

4. In the Geoprocessing pane, search for Share Package, and select the Share Package (Data Management Tools) tool from the search results.



5. On the Share Package dialog box, do the following:
   1. For Input Package, provide the path to the vector tile package, for example, C:\Projects\OSM_Vector_Basemaps_2025\VTPK\OSM_Vector_Basemap_DA2025_Install.vtpk.
   2. For Summary, type OSM Vector Basemap for Data Appliance 2025.
   3. For Tags, type 2025, v2.

   Caution:

   Do not change the Credits parameter value and do not check the Publish web layer, Share with everyone, or Share within organization only check boxes.



6. Click Run.

   It will take approximately 30 to 120 minutes to upload the package to your portal. A Share Package Uploaded Successfully message appears in the Share Package window once the upload is complete.

7. Through your portal, confirm that the .vtpk file uploaded successfully.
   1. Open a web browser and sign in to your portal.

      The OSM_Vector_Basemap_DA2025_Install tile package is located in the root folder.

   2. Under Details, confirm that the Size value of the tile package matches the size for your vector tile package and Enterprise version in the following table and Shared with indicates that the item is not shared.

   Vector tile package .vtpk file	Enterprise version	Size
   OSM_Vector_Basemap_DA2025_Install.vtpk (WMA)	10.9.1	63,475 MB
   	11.1, 11.2, or 11.3	63,474.87 MB
   OSM_Vector_Basemap_GCS_DA2025_Install.vtpk (WGS84)	10.9.1	63,616 MB
   	11.1, 11.2, or 11.3	63,616.091 MB
   OSM_Vector_Basemap_DAWB2025_Install.vtpk (WMA)	10.9.1	7,078 MB
   	11.1, 11.2, or 11.3	7,078.187 MB

   Your item should look similar to the following when uploading OSM_Vector_Basemap_DA2025_Install.vtpk (WMA) in Enterprise 11.3:



Note:

If the size is not correct, delete the item and upload the OSM_Vector_Basemap_DA2025_Install tile package again. You may want to discuss the problem with your portal administrator.

For the OSM_Vector_Basemap_GCS_DA2025_Install tile package, if the size is not correct, delete the item and upload it again.

For the OSM_Vector_Basemap_DAWB2025_Install.vtpk tile package (WMA), if the size is not correct, delete the item and upload it again.

See the Troubleshooting OSM Vector Basemaps topic for more information.

Publish the new hosted tile layer (service)

Now you'll publish the new OSM Vector Basemaps hosted tile layer service from your portal.

1. Sign in to your ArcGIS Enterprise portal.

   Note:

   Your account must have publishing credentials.
2. In My Content, go to the item page for the vector tile package (OSM_Vector_Basemap_DA2025_Install.vtpk) you uploaded to your portal.

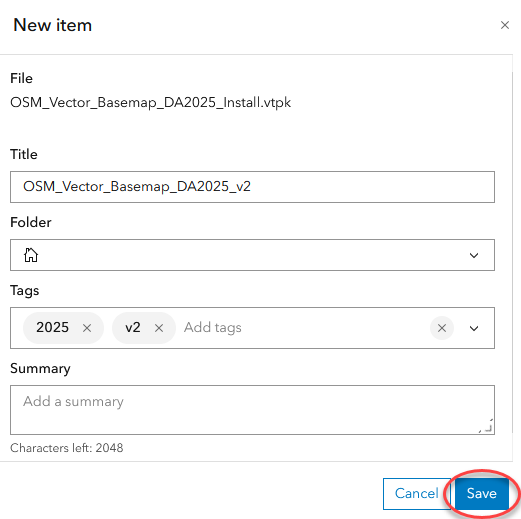

3. Click Publish, change the title to OSM_Vector_Basemap_DA2025_v2, and click Save (if you are using 11.1, click Next) to publish the service.



   Note:

   For the GCS tile package, use the OSM_Vector_Basemap_GCS_DA2025_Install.vtpk file. Change the title to OSM_Vector_Basemap_GCS_DA2025_v2 for the hosted tile layer that is published.

   For the WB tile package, use the OSM_Vector_Basemap_DAWB2025_Install.vtpk file. Change the title to OSM_Vector_Basemap_DAWB2025_v2 for the hosted tile layer that is published.

   Note:

   It will take 30 to 120 minutes to create the hosted layer, depending on your system configuration.

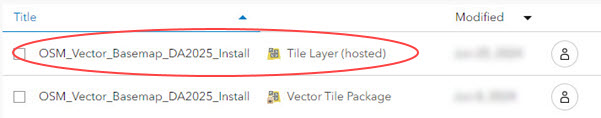

   The OSM_Vector_Basemap_v2 hosted tile layer is created. After publishing in 11.1, 11.2, or 11.3, the Vector Tile Service URL is OSM_Vector_Basemap_DA2025_v2 but the item is named OSM_Vector_Basemap_DA2025_Install. You need to change the title.

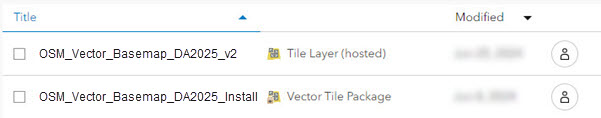

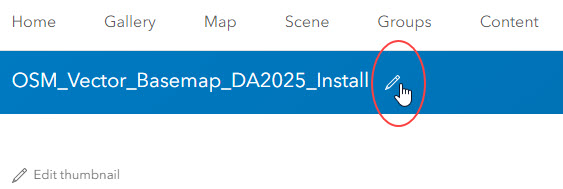

4. In 11.1, 11.2, or 11.3, go to the item page for the hosted tile layer (OSM_Vector_Basemap_DA2025_Install), click the Edit button next to the current item title on the Overview tab of the item page, change the Title to OSM_Vector_Basemap_DA2025_v2, and click Save.





   Note:

   For the GCS tile package (OSM_Vector_Basemap_GCS_DA2025_Install.vtpk), change the title to OSM_Vector_Basemap_DA2025_GCS_v2.

   For the WB tile package, (OSM_Vector_Basemap_DAWB2025_Install.vtpk), change the title to OSM_Vector_Basemap_DAWB2025_v2.

Replace the existing hosted tile layer (service) with the new hosted tile layer (service)

Next, you'll replace the 2024 basemap hosted tile layer (service) with the 2025 hosted tile layer (service).

1. Sign in to your ArcGIS Enterprise portal.

   Note:

   Your account must have publishing credentials.
2. In My Content, go to the item page that has OSM_Vector_Basemap_v2 within the vector tile service URL in the hosted tile layer item page. Usually, the item page Title matches OSM_Vector_Basemap_v2 but in some cases it may not. It is important to verify the correct vector tile service URL before proceeding with the replacement.

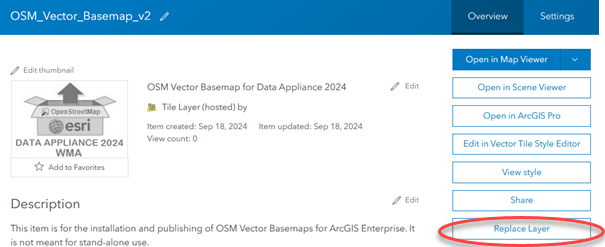

3. Click Replace Layer.

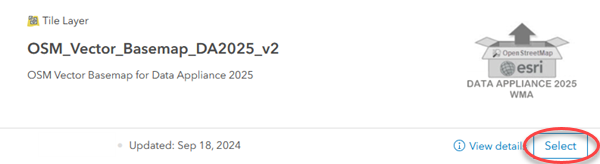

4. Click Select Layer, and select the new hosted tile layer that you just published, for example, OSM_Vector_Basemap_DA2025_v2. Click Select.



5. Click Next.

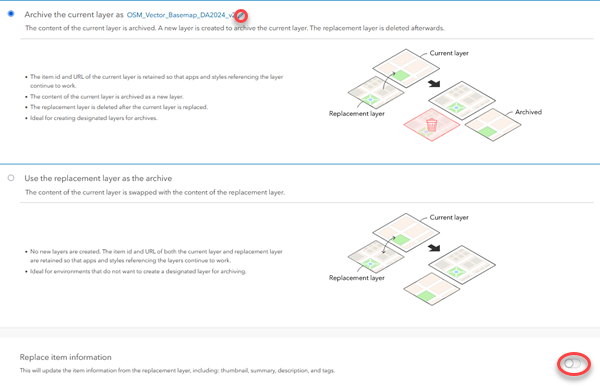

6. For Archive the current layer as, click the Edit button , change the value to OSM_Vector_Basemap_DA2024_v2, and click Save. Scroll to Replace item information and click the toggle button.



7. Click Next.
8. On the Replace Layer summary, click Replace.


   Note:

   The current layer starts as DA2024. The replacement layer is DA2025. You are archiving the DA2024 hosted tile layer, and the current layer (OSM_Vector_Basemap_v2) now displays the DA2025 hosted tile layer. Replacing the tile set allows the item ID and URL paths to remain intact, so maps and apps continue to work with the current layer and display the new DA2025 basemap content.

   The Success message flashes briefly at the top of the screen.

9. To verify a successful replacement, in My Content, go to the item page for the OSM_Vector_Basemap_v2 vector tile service.

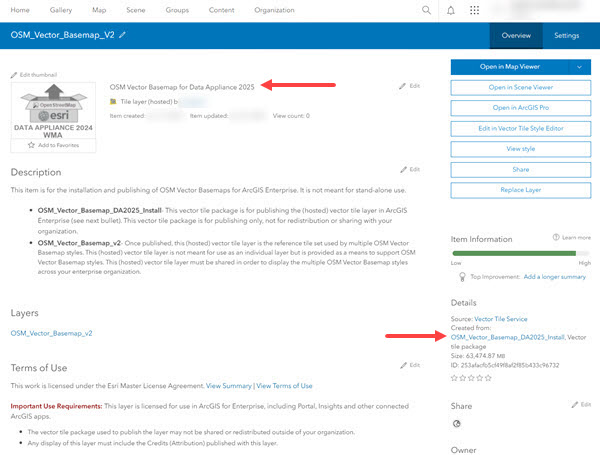

   Your item should look like the following:



   Note:

   The thumbnail is not replaced, but the summary is OSM Vector Basemap for Data Appliance 2025 and the Details section indicates it was created from the OSM_Vector_Basemap_DA2025_Install Vector tile package.

Update existing tile layers (map styles)

Use the Vector Style Updater tool to update your existing layers.

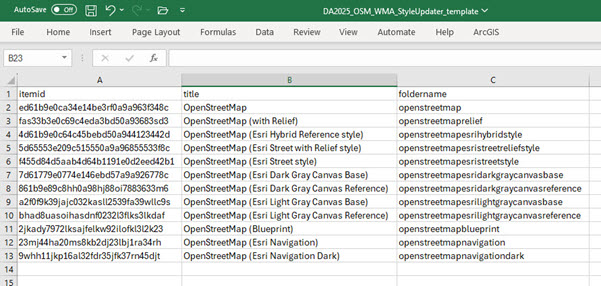

1. Open the DA2025_OSM_WMA_StyleUpdater_template.csv file located in the C:\Projects\OSM_Vector_Basemaps_2025\Toolbox folder.

   Note:

   For GCS, open the DA2025_OSM_GCS_StyleUpdater_template.csv file located in the C:\Projects\OSM_Vector_Basemaps_2025\Toolbox folder.

   For WB, open the DAWB2025_OSM_WMA_StyleUpdater_template.csv file located in the C:\Projects\OSMWB_Vector_Basemaps_2025\Toolbox folder.

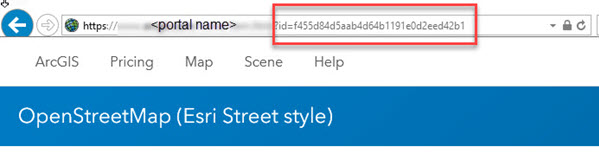

   1. Include the item IDs of all your existing styles in the itemid column in this table. Obtain the item ID for each style from the portal URL for each style. Only copy and paste the series of letters and numbers after ...id=.



      Note:

      Ensure the titles in the template file match the titles of existing items in your Portal.

   2. Once you fill in the itemid column, save the file and rename it DA2025_OSM_WMA_StyleUpdater.csv.

      Note:

      For GCS, rename it DA2025_OSM_GCS_StyleUpdater.csv or for WB, rename it DAWB2025_OSM_WMA_StyleUpdater.csv.



      Note:

      These are example item IDs. Use the IDs that are unique to your items in your portal.

2. Run the Vector Style Updater tool.
   1. Start ArcGIS Pro, sign in to your ArcGIS Enterprise portal, click the Options button , and click Set As Active Portal.
   2. Create a project.
   3. Click the View tab, click Catalog View in the Windows group, right-click Toolboxes, and click Add Toolbox.
   4. Browse to the location on your local computer where you downloaded the files or copied the contents of the USB flash drive, click VectorStyleUpdater.tbx, and click OK.

      The VectorStyleUpdater toolbox is added to the project.

   5. Double-click Toolboxes, and double-click VectorStyleUpdater.tbx.

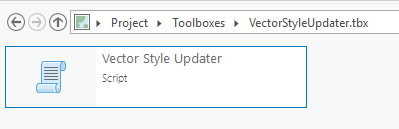

   6. Double-click the Vector Style Updater script.

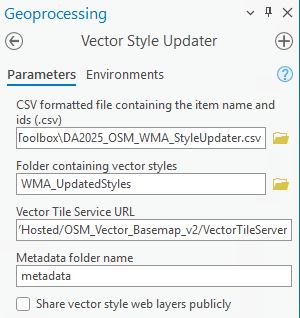

   7. On the Vector Style Updater dialog box, click the Parameters tab and do the following:



      1. For CSV formatted file containing the item name and ids (.csv), browse to the location of the DA2025_OSM_WMA_StyleUpdater.csv file on your local computer.
      2. For Folder containing vector styles, browse to the location of the WMA Updated Styles folder on your local computer, for example, C:\Projects\OSM_Vector_Basemaps_2025\VectorBasemapStyles\WMA\WMA_ExistingUser\WMA_UpdatedStyles.

         Note:

         For the GCS tile package, browse to the location of the VectorBasemapStyles folder on your local computer, for example, C:\Projects\OSM_Vector_Basemaps_2025\VectorBasemapStyles\GCS\GCS_ExistingUser\GCS_UpdatedStyles.

         For the WB tile package, browse to the location of the VectorBasemapStyles folder on your local computer, for example, C:\Projects\OSMWB_Vector_Basemaps_2025\VectorBasemapStyles\WB_ExistingUser\WB_UpdatedStyles.

      3. For Vector Tile Service URL, provide the URL of the OSM Vector Basemap tile layer that you replaced above, for example, https://portalname.domain.com/server/rest/services/Hosted/OSM_Vector_Basemap_v2/VectorTileServer.

         Note:

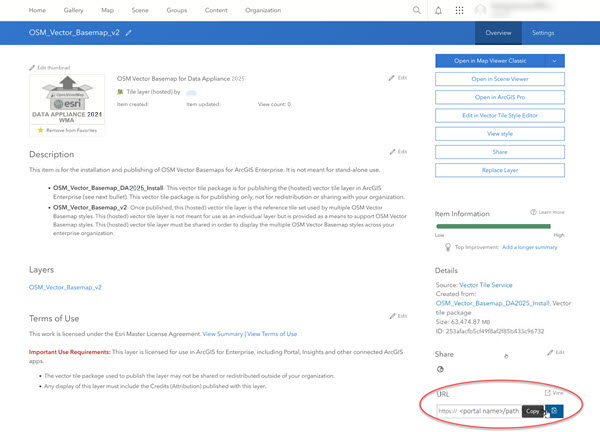

         The vector tile service URL is in the URL section of the OSM_Vector_Basemap_v2 hosted tile layer item page. Click the Copy button and paste the URL in the Vector Tile Service URL parameter text box.



      4. For Metadata folder name, keep the default name metadata.

         Note:

         If you are using a portal with PKI authentication, expand PKI Authorization and provide values for the PKI Certificated file (.pfx) and PKI Private Password parameters.



         If you are using a portal with Linux LDAP authentication, expand Linux LDAP and provide values for the Sign In Username and Sign In Password parameters.



3. Click Run.

   It can take up to a minute to update each existing style in your portal using the Vector Style Updater tool.

   The VectorStyleUpdater toolbox displays a successful update message when complete.

   Note:

   If there are warnings, rerun the VectorStyleUpdated toolbox until you receive a successful update message.

The 12 vector tile layers (map styles) are updated in your assigned ArcGIS Enterprise account. You can view the 12 items in My Content.

Publish new tile layers (map styles)

Now that you've published and updated your hosted vector Tile Layer and updated the existing styles, you are ready to publish any new map styles.

VectorStylePublisher.tbx is a geoprocessing toolbox that is run in ArcGIS Pro. This toolbox publishes new private map items in your portal for any new vector tile layers and transfers the vector basemap style resource folders and files and metadata for the map item pages from your local computer to your portal.

1. In the ArcGIS Pro project you created to update the existing styles, select the View tab, select Catalog View in the Windows group, right-click Toolboxes, and select Add Toolbox.

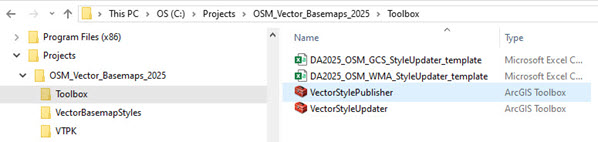

2. Browse to the location on your local computer where you downloaded the files or copied the contents of the USB flash drive, select VectorStylePublisher.tbx, and select OK.



   The VectorStylePublisher toolbox is added to the project.

3. Double-click Toolboxes, and double-click VectorStylePublisher.tbx.



4. Double-click the Vector Style Publisher script.



5. On the Vector Style Publisher dialog box, select the Parameters tab and provide the following:



   1. For Folder containing vector styles, browse to the location of the WMA New Styles folder on your local computer, for example, C:\Projects\OSM_Vector_Basemaps_2025\VectorBasemapStyles\WMA\WMA_ExistingUser\WMA_NewStyles.

      Note:

      For the GCS tile package, browse to the location of the VectorBasemapStyles folder on your local computer, for example, C:\Projects\OSM_Vector_Basemaps_2025\VectorBasemapStyles\GCS\GCS_ExistingUser\GCS_NewStyles.

      For the WB tile package, browse to the location of the VectorBasemapStyles folder on your local computer, for example, C:\Projects\OSMWB_Vector_Basemaps_2025\VectorBasemapStyles\WB_ExistingUser\WB_NewStyles.

   2. For Vector Tile Service URL, provide the URL of the OSM Vector Basemap tile layer, for example, https://portalname.domain.com/arcgis/rest/services/Hosted/OSM_Vector_Basemap_v2/VectorTileServer.

      Note:

      The vector tile service URL is in the URL section of the OSM_Vector_Basemap_v2 hosted tile layer item page. Click the Copy button and paste the URL in the Vector Tile Service URL parameter text box.

   3. For Metadata folder name, keep the default name metadata.

      Note:

      If you are using a portal with PKI authentication, expand PKI Authorization and provide values for the PKI_Certificated_file_(.pfx) and PKI Private Password parameters.



      If you are using a portal with Linux LDAP authentication, expand Linux LDAP and provide values for the Sign In Username and Sign In Password parameters.



   4. Click Run.

The new vector tile layer (map style) is created in your assigned ArcGIS Enterprise portal account. You can view the items in My Content. A minimum of 17 items are listed: 13 vector tile layers (1 new plus 12 existing), both 2024 and 2025 .vtpk files, and the active and archived hosted tile layers. You may have more items if you have earlier versions than 2024.

Share tile layers (map styles)

The items initially created are private unless you made them public through the Publisher toolbox dialog box or by selecting the map items in your portal and changing the sharing settings.

Note:

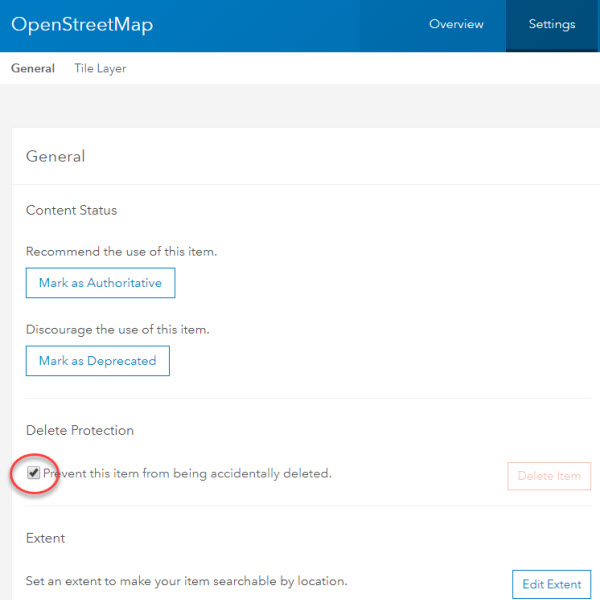

Delete protection for all items is applied on publishing the tile layers. To change the protection setting, open the item and click the Settings tab. Under Delete Protection, uncheck Prevent this item from being accidentally deleted and click Save.

Once you set up the OSM Vector Basemaps update, you can do the following:

• Use OSM Vector Basemaps
• Customize OSM Vector Basemap styles
• Localize OSM Vector Basemap styles
