Scale an object

On the CityEngine toolbar, use the Transform Scale tool (E) to scale objects. You can also click Edit > Scale Tool in the main menu. You can scale selected objects and components along the x, y, and z axes. Use the yellow handle to uniformly scale along all axes.

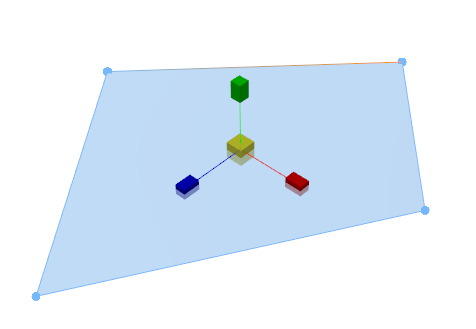

Scale tool with shape

You can apply transform scale options, such as reference system, position and orientation, scale, or snapping in the Transform Scale tool options .

Tool options

The Transform Scale tool options include the following:

Transform Scale
Reference System	See Set a reference system.
Adjust the Position and Orientation	See Adjust position and orientation.
Transform Individually	When multiple objects are selected, scale individual objects around their centroid with axes defined by the reference system.*
Scale (%)	Scale objects along the axes of the reference system. Press Enter to apply a value. Press Tab to move to the next input field. Apply only one value at a time. —Enables uniform scaling along the axes.
Snapping	Turn snapping options on and off. Press Shift to temporarily turn on or off snapping.
