Add lanes

In the Street Designer Street Designer tools, you can use Add Lanes Add Lanes to add roadbed or sidewalk lanes.

You can set the lane options in the Tool Options windowTool options.

Add lanes to a street

To add lanes to a street, do the following:

  1. Click the Street Designer tool Street Designer on the toolbar and click the Add Lanes tool Add Lanes in the Tool Options windowTool options or press V+A.

    You can also click Graph > Add Lanes in the main menu.

  2. Hover over the street where you wish to add the lane.

    If there is currently no roadbed lane, adding a lane at the dotted line will add a roadbed lane.

    To add a roadbed lane, do the following:

    1. Hover over the roadbed lane inside the dotted line.

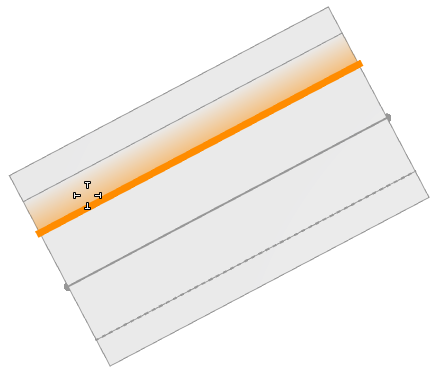

      Adding a roadbed lane

    2. Click to add a roadbed lane.

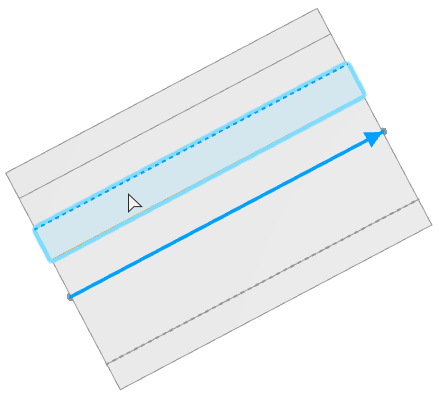

      Roadbed lane added

    To add a sidewalk lane, do the following:

    1. Hover outside the dotted line.

      Sidewalk lane to be added

    2. Click to add a sidewalk lane.

      Sidewalk lane added

Tool options

The Add Lanes tool options Tool options include the following:

Tool optionsAdd Lanes

Preserve Segment Offset

Preserve the segment offset value set in the Segment Parameters. If the option is turned off, the offset is adapted such that the lane under the centerline will not move.

New Lane Width

The width of the lane to be added.

Rule file

The rule file to be assigned to the new lane. The ESRI.lib/rules/streets/lane folder contains a complete set of lane rules to apply.

Apply rule-based model generation

If enabled, model generation is automatically triggered.
