Remove lanes

In the Street Designer tools, you can use Remove Lanes to remove roadbed or sidewalk lanes.

Remove lanes from a street

To remove a lane from a street, do the following:

1. Click the Street Designer on the toolbar and click the Remove Lanes tool in the Tool Options window or press V+R.

   You can also click Graph > Remove Lanes in the main menu.

2. Do one of the following:

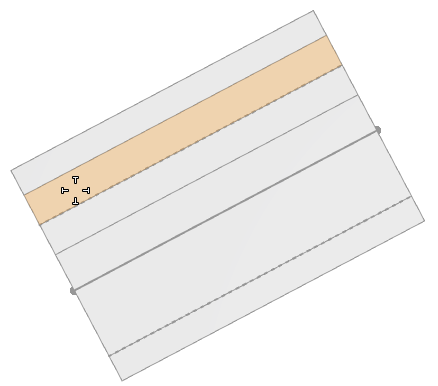

   1. Hover over the roadbed lane and click to remove the lane.

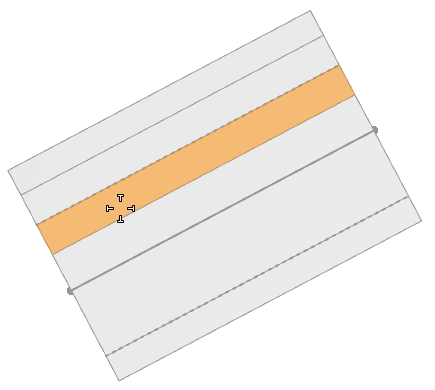

   2. Hover over the sidewalk lane and click to remove the lane.



Tool options

The Remove Lanes tool options include the following:

Remove Lanes
Preserve Segment Offset	Preserve the segment offset value set in the Segment Parameters. If the option is turned off, the offset is adapted such that the lane under the centerline will not move.
