VfCos—ArcGIS AllSource

Available with Spatial Analyst license.

Summary

Defines the relationship between the vertical cost factor and the vertical relative moving angle through a cosine function.

Illustration

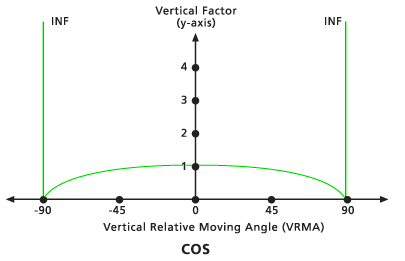

VfCos vertical factor graph — Graph of the cosine vertical factor.

Discussion

This object is used in the Distance Accumulation and Distance Allocation Spatial Analyst tools, as well as the Path Distance, Path Distance Allocation, and Path Distance Back Link Legacy Distance tools.

The vertical factor (VF) object defines the relationship between the vertical cost factor and the vertical relative moving angle (VRMA).

VF defines the vertical difficulty encountered in moving from one cell to the next.

VRMA identifies the slope angle between the FROM or processing cell and the TO cell.

The VF is determined by the cosine function of the VRMA.

Syntax

VfCos ({lowCutAngle}, highCutAngle, {cosPower})

Parameter	Explanation	Data Type
lowCutAngle	The VRMA degree defining the lower threshold, below which (less than) the VFs are set to infinity. (The default value is -90.0)	Double
highCutAngle	The VRMA degree defining the upper threshold, beyond which (larger than) the VFs are set to infinity. (The default value is 90.0)	Double
cosPower	The power to which the values in the cosine VRMA function will be raised. The VF is determined by: `VF = cos(VRMA)power` (The default value is 1.0)	Double

Properties

Property	Explanation	Data Type
lowCutAngle (Read and Write)	The VRMA degree defining the lower threshold, below which (less than) the VFs are set to infinity.	Double
highCutAngle (Read and Write)	The VRMA degree defining the upper threshold, beyond which (larger than) the VFs are set to infinity.	Double
cosPower (Read and Write)	The power to which the values in the cosine VRMA function will be raised. The VF is determined by: `VF = cos(VRMA)power`	Double

Code sample

VfCos example 1 (Python window)

Demonstrates how to create a VfCos class and use it in the DistanceAccumulation tool within the Python window.

import arcpy
from arcpy import env
from arcpy.sa import *
env.workspace = "C:/sapyexamples/data"
myVerticalFactor = VfCos(-15, 15, 1.5)
outDistAccum = DistanceAccumulation("Source.shp", "", "elev.tif",
                                   "cost.tif", "elev.tif",
                                    myVerticalFactor)
outDistAccum.save("C:/sapyexamples/output/distAccumVfC.tif")

VfCos example 2 (stand-alone script)

Performs a DistanceAccumulation analysis using the VfCos class.

# Name: VfCos_Ex_02.py
# Description: Uses the VfCos object to execute the PathDistance tool.
# Requirements: Spatial Analyst Extension

# Import system modules
import arcpy
from arcpy import env
from arcpy.sa import *

# Set environment settings
env.workspace = "C:/sapyexamples/data"

# Set local variables
inSourceData = "source.shp"
inCostRaster = "costraster"

# Create the VfCos Object
lowCutAngle = -15
highCutAngle = 45
cosPower = 2
myVerticalFactor = VfCos(lowCutAngle, highCutAngle, cosPower)

# Execute PathDistance
outPathDist = PathDistance(inSourceData, inCostRaster, "", "", "", "",
                           myVerticalFactor)

# Save the output
outPathDist.save("C:/sapyexamples/output/pathdistvfc2")
