Times (Spatial Analyst)

Summary

Multiplies the values of two rasters on a cell-by-cell basis.

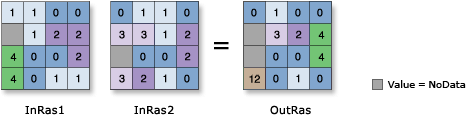

Illustration

OutRas = Times (InRas1, InRas2)

Usage

• The order of inputs is irrelevant for this tool.

• If both inputs are integer, the output will be an integer raster; otherwise, it will be a floating-point raster.

• If both inputs are single-band rasters or one of the inputs is a constant, the output will be a single-band raster.

• If both inputs are multiband rasters, the tool will perform the operation on each band from one input, and the output will be a multiband raster. The number of bands in each multiband input must be the same.

• If one of the inputs is a multiband raster and the other input is a constant, the tool will perform the operation using the constant value for each band in the multiband input, and the output will be a multiband raster.

• If both inputs are multidimensional raster data with the same number of variables, the tool will perform the operation for all slices with the same dimension value. The output will be a multidimensional raster in CRF format. The variables in the inputs must have at least one common dimension and one common dimensional value for this tool to process; otherwise, an error will occur.

  If both inputs have one variable but different names, uncheck the Match Multidimensional Variable geoprocessing environment (set arcpy.env.matchMultidimensionalVariable = False in Python) before running the tool.

  If one of the inputs is a multidimensional raster and the other input is a constant, the tool will perform the operation for all slices for all variables using the constant value, and the output will be a multidimensional raster.

• In map algebra, the equivalent operator symbol for this tool is "*" (link).

• See Analysis environments and Spatial Analyst for additional details on the geoprocessing environments that apply to this tool.

Parameters

Dialog

Label	Explanation	Data Type
Input raster or constant value 1	The input containing the values to be multiplied. A number can be used as an input for this parameter, provided a raster is specified for the other parameter. To specify a number for both inputs, the cell size and extent must first be set in the environment.	Raster Layer; Constant
Input raster or constant value 2	The input containing the values by which the first input will be multiplied. A number can be used as an input for this parameter, provided a raster is specified for the other parameter. To specify a number for both inputs, the cell size and extent must first be set in the environment.	Raster Layer; Constant

Return Value

Label	Explanation	Data Type
Output raster	The output raster. The cell values are the product of the first input multiplied by the second.	Raster

Python

Times(in_raster_or_constant1, in_raster_or_constant2)

Name	Explanation	Data Type
in_raster_or_constant1	The input containing the values to be multiplied. A number can be used as an input for this parameter, provided a raster is specified for the other parameter. To specify a number for both inputs, the cell size and extent must first be set in the environment.	Raster Layer; Constant
in_raster_or_constant2	The input containing the values by which the first input will be multiplied. A number can be used as an input for this parameter, provided a raster is specified for the other parameter. To specify a number for both inputs, the cell size and extent must first be set in the environment.	Raster Layer; Constant

Return Value

Name	Explanation	Data Type
out_raster	The output raster. The cell values are the product of the first input multiplied by the second.	Raster

Code sample

Times example 1 (Python window)

This example multiplies the values of an input elevation raster by a constant value to convert the elevation values from feet to meters.

import arcpy
from arcpy import env
from arcpy.sa import *
env.workspace = "C:/sapyexamples/data"
outTimes = Times("elevation", "0.3048")
outTimes.save("C:/sapyexamples/output/outtimes")

Times example 2 (stand-alone script)

This example multiplies the values of an input elevation raster by a constant value to convert the elevation values from feet to meters.

# Name: Times_Ex_02.py
# Description: Multiplies the values of two rasters on a cell-by-cell basis.
# Requirements: Spatial Analyst Extension

# Import system modules
import arcpy
from arcpy import env
from arcpy.sa import *

# Set environment settings
env.workspace = "C:/sapyexamples/data"

# Set local variables
inRaster = "elevation"
inConstant = 0.3048

# Execute Times
outTimes = Times(inRaster, inConstant)

# Save the output
outTimes.save("C:/sapyexamples/output/timesout")

Environments

Auto Commit, Cell Size, Cell Size Projection Method, Compression, Current Workspace, Extent, Geographic Transformations, Mask, Output CONFIG Keyword, Output Coordinate System, Scratch Workspace, Snap Raster, Tile Size
