Combinatorial Or (Image Analyst)

Summary

Performs a Combinatorial Or operation on the cell values of two input rasters.

If either input value is true (non-zero), the output is a different value for each unique combination of input values. If both inputs are false (zero), the output value is 0.

Learn more about how Combinatorial tools work

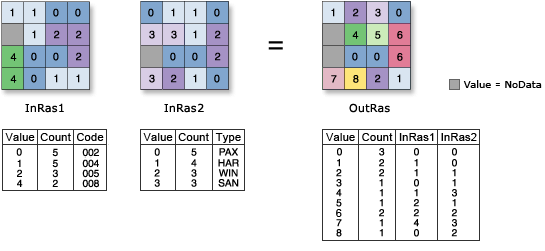

Illustration

OutRas = CombinatorialOr(InRas1, InRas2)

Usage

• The Combinatorial math tools interpret the inputs as Boolean values in which nonzero values are considered true and zero is considered false.

• Two inputs are necessary for this combinatorial evaluation to take place.

• The order of inputs for this tool is only relevant for the output attribute table.

Parameters

Dialog

Label	Explanation	Data Type
Input raster or constant value 1	The first input to use in this combinatorial operation. It must be of integer type. A number can be used as an input for this parameter, provided a raster is specified for the other parameter. To specify a number for both inputs, the cell size and extent must first be set in the environment.	Raster Layer; Constant
Input raster or constant value 2	The second input to use in this combinatorial operation. It must be of integer type. A number can be used as an input for this parameter, provided a raster is specified for the other parameter. To specify a number for both inputs, the cell size and extent must first be set in the environment.	Raster Layer; Constant

Return Value

Label	Explanation	Data Type
Output raster	The output raster. The output is always of integer type.	Raster

Python

CombinatorialOr(in_raster_or_constant1, in_raster_or_constant2)

Name	Explanation	Data Type
in_raster_or_constant1	The first input to use in this combinatorial operation. It must be of integer type. A number can be used as an input for this parameter, provided a raster is specified for the other parameter. To specify a number for both inputs, the cell size and extent must first be set in the environment.	Raster Layer; Constant
in_raster_or_constant2	The second input to use in this combinatorial operation. It must be of integer type. A number can be used as an input for this parameter, provided a raster is specified for the other parameter. To specify a number for both inputs, the cell size and extent must first be set in the environment.	Raster Layer; Constant

Return Value

Name	Explanation	Data Type
out_raster	The output raster. The output is always of integer type.	Raster

Code sample

CombinatorialOr example 1 (Python window)

This example performs a Combinatorial Or operation on two GRID rasters and outputs the result as an IMG raster.

import arcpy
from arcpy import env
from arcpy.ia import *
env.workspace = "C:/iapyexamples/data"
outCOr = CombinatorialOr("degs", "cost")
outCOr.save("C:/iapyexamples/output/outcor.img")

CombinatorialOr example 2 (stand-alone script)

This example performs a Combinatorial Or operation on two GRID rasters.

# Name: CombinatorialOr_Ex_02.py
# Description: Performs a Combinatorial Or operation on the pixel
#              values of two input rasters
# Requirements: Image Analyst Extension

# Import system modules
import arcpy
from arcpy import env
from arcpy.ia import *

# Set environment settings
env.workspace = "C:/iapyexamples/data"

# Set local variables
inRaster1 = "degs"
inRaster2 = "cost"

# Check out the ArcGIS Image Analyst extension license
arcpy.CheckOutExtension("ImageAnalyst")

# Execute CombinatorialOr
outCOr = CombinatorialOr(inRaster1, inRaster2)

# Save the output
outCOr.save("C:/iapyexamples/output/outcor")

Environments

Auto Commit, Cell Size, Cell Size Projection Method, Compression, Current Workspace, Extent, Geographic Transformations, Mask, Output CONFIG Keyword, Output Coordinate System, Scratch Workspace, Snap Raster, Tile Size
