Bitwise Right Shift (Image Analyst)

Available with Spatial Analyst license.

Available with Image Analyst license.

Summary

Performs a Bitwise Right Shift operation on the binary values of two input rasters.

Learn more about how Bitwise Math tools work

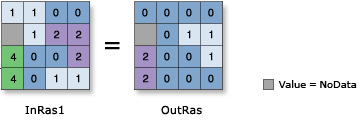

Illustration

OutRas = BitwiseRightShift(InRas1, 1)

Usage

• Two inputs are necessary for this bitwise operation to take place.

• The order of inputs is relevant for this tool.

• If an input is floating point, the values are converted to integer values through truncation before the bitwise operation is performed.

• In bitwise operations, the following are true:

  • Binary values are stored in two's complement.
  • The tools work on 32-bit integers.
  • The leftmost bit position is reserved for the sign (positive or negative) of the value. If the integer is positive, the bit position is 0; if it's negative, the bit position is 1.

• The Bitwise Right Shift operation does no wrapping of bits. The rightmost bit is dropped.

• If both inputs are single-band rasters or one of the inputs is a constant, the output will be a single-band raster.

• If both inputs are multiband rasters, the tool will perform the operation on each band from one input, and the output will be a multiband raster. The number of bands in each multiband input must be the same.

• If one of the inputs is a multiband raster and the other input is a constant, the tool will perform the operation using the constant value for each band in the multiband input, and the output will be a multiband raster.

• If both inputs are multidimensional raster data with the same number of variables, the tool will perform the operation for all slices with the same dimension value. The output will be a multidimensional raster in CRF format. The variables in the inputs must have at least one common dimension and one common dimensional value for this tool to process; otherwise, an error will occur.

  If both inputs have one variable but different names, uncheck the Match Multidimensional Variable geoprocessing environment (set arcpy.env.matchMultidimensionalVariable = False in Python) before running the tool.

  If one of the inputs is a multidimensional raster and the other input is a constant, the tool will perform the operation for all slices for all variables using the constant value, and the output will be a multidimensional raster.

• In map algebra, the equivalent operator symbol for this tool is ">>" (link).

Parameters

Dialog

Label	Explanation	Data Type
Input raster or constant value 1	The input on which to perform the shift. A number can be used as an input for this parameter, provided a raster is specified for the other parameter. To specify a number for both inputs, the cell size and extent must first be set in the environment.	Raster Layer; Constant
Input raster or constant value 2	The input defining the number of positions to shift the bits. A number can be used as an input for this parameter, provided a raster is specified for the other parameter. To specify a number for both inputs, the cell size and extent must first be set in the environment.	Raster Layer; Constant

Return Value

Label	Explanation	Data Type
Output raster	The output raster. The cell values are the result of a Bitwise Right Shift operation on the inputs.	Raster

Python

BitwiseRightShift(in_raster_or_constant1, in_raster_or_constant2)

Name	Explanation	Data Type
in_raster_or_constant1	The input on which to perform the shift. A number can be used as an input for this parameter, provided a raster is specified for the other parameter. To specify a number for both inputs, the cell size and extent must first be set in the environment.	Raster Layer; Constant
in_raster_or_constant2	The input defining the number of positions to shift the bits. A number can be used as an input for this parameter, provided a raster is specified for the other parameter. To specify a number for both inputs, the cell size and extent must first be set in the environment.	Raster Layer; Constant

Return Value

Name	Explanation	Data Type
out_raster	The output raster. The cell values are the result of a Bitwise Right Shift operation on the inputs.	Raster

Code sample

BitwiseRightShift example 1 (Python window)

This example right-shifts the values of the first input by the number of bits defined by the second input, and outputs the result as a Grid raster.

import arcpy
from arcpy import env
from arcpy.ia import *
env.workspace = "C:/iapyexamples/data"
outBitwiseRShift = BitwiseRightShift("degs", "negs")
outBitwiseRShift.save("C:/iapyexamples/output/outbitrs")

BitwiseRightShift example 2 (stand-alone script)

This example right-shifts the values of the first input by the number of bits defined by the second input, and outputs the result as an IMG raster.

# Name: BitwiseRightShift_Ex_02.py
# Description: Performs a Bitwise Right Shift operation on the binary
#              values of two input rasters
# Requirements: Image Analyst Extension

# Import system modules
import arcpy
from arcpy import env
from arcpy.ia import *

# Set environment settings
env.workspace = "C:/iapyexamples/data"

# Set local variables
inRaster1 = "degs"
inRaster2 = "negs"

# Check out the ArcGIS Image Analyst extension license
arcpy.CheckOutExtension("ImageAnalyst")

# Execute BitwiseRightShift
outBitwiseRShift = BitwiseRightShift(inRaster1, inRaster2)

# Save the output
outBitwiseRShift.save("C:/iapyexamples/output/outbitrshift.img")

Environments

Auto Commit, Cell Size, Cell Size Projection Method, Compression, Current Workspace, Extent, Geographic Transformations, Mask, Output CONFIG Keyword, Output Coordinate System, Scratch Workspace, Snap Raster, Tile Size
