Snap (Editing)

Summary

Moves points or vertices to coincide exactly with the vertices, edges, or end points of other features. Snapping rules can be specified to control whether the input vertices are snapped to the nearest vertex, edge, or endpoint within a specified distance.

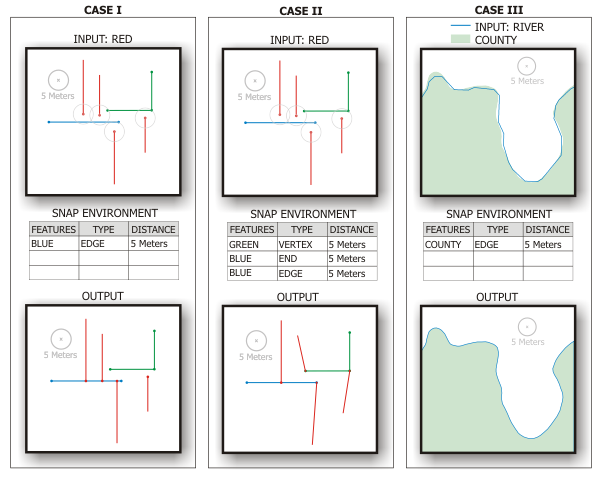

Illustration

Usage

Caution:

This tool modifies the input data. See Tools that modify or update the input data for more information and strategies to avoid undesired data changes.

• The snap environment allows the vertices of the input features to be snapped to the vertices, edges, and end points of multiple layers or feature classes. When multiple snapping rules are provided, they are prioritized from top to bottom on the tool dialog box or from left to right in scripting.

• The input features' vertices will be snapped to the nearest vertex, edge, or end point within the specified distance.

• Multiple snapping rules can be specified using the same layer or feature class with a different snapping type or distance.

• If a feature layer with a selection or filter is used as the input, only vertices of the selected features will be snapped. If a feature layer with a selection or filter is used as the snap environment features, only those selected features will be snapped to.

• When snapping features in a feature class to features in the same feature class, the feature with the lower Object or Feature ID will typically be snapped to the feature with the higher Object ID. For example, if points with OBJECTID field values of 1 and 2 are within the snapping distance, the point with an OBJECTID field value of 1 will be snapped to the location of the point with an OBJECTID field value of 2 (and not vice versa).

Note:

This tool can be used to reconcile the differences in shared or common boundaries between two datasets by snapping the vertices in one boundary to the vertices, edges, or end points of the other. If the input features do not have enough vertices to match the exact curvature of the other boundary, vertices can be added to the input features using the Densify tool to allow an added level of detail.

Parameters

Dialog

Label	Explanation	Data Type
Input Features	The input features with the vertices that will be snapped to the vertices, edges, or end points of other features. The input features can be points, multipoints, lines, or polygons.	Feature Layer
Snap Environment	The feature classes or feature layers containing the features to snap to. The snapping environment components are as follows: Features—The features that the input features' vertices will be snapped to. These features can be points, multipoints, lines, or polygons. Type—The type of feature part that the input features' vertices can be snapped to. Distance—The distance within which the input features' vertices will be snapped to the nearest end point, vertex, or edge. Available snapping types are as follows: End—Input feature vertices will be snapped to feature ends. Vertex—Input feature vertices will be snapped to feature vertices. Edge—Input feature vertices will be snapped to feature edges. Note: If a distance is used without a unit (for example, 10 instead of 10 meters), the linear or angular unit from the input feature's coordinate system will be used as the default. If the input features have a projected coordinate system, its linear unit will be used.	Value Table

Derived Output

Label	Explanation	Data Type
Snapped Input Features	The updated input features.	Feature Class

Python

arcpy.management.Snap(in_features, snap_environment)

Name	Explanation	Data Type
in_features	The input features with the vertices that will be snapped to the vertices, edges, or end points of other features. The input features can be points, multipoints, lines, or polygons.	Feature Layer
snap_environment [[Features, Type, Distance],...]	The feature classes or feature layers containing the features to snap to. The snapping environment components are as follows: Features—The features that the input features' vertices will be snapped to. These features can be points, multipoints, lines, or polygons. Type—The type of feature part that the input features' vertices can be snapped to. Distance—The distance within which the input features' vertices will be snapped to the nearest end point, vertex, or edge. Available snapping types are as follows: END—Input feature vertices will be snapped to feature ends. VERTEX—Input feature vertices will be snapped to feature vertices. EDGE—Input feature vertices will be snapped to feature edges. Note: If a distance is used without a unit (for example, 10 instead of 10 meters), the linear or angular unit from the input feature's coordinate system will be used as the default. If the input features have a projected coordinate system, its linear unit will be used.	Value Table

Derived Output

Name	Explanation	Data Type
out_feature_class	The updated input features.	Feature Class

Code sample

Snap example 1 (Python window)

The following Python window script demonstrates how to use the Snap function.

import arcpy
arcpy.env.workspace = "C:/data"

arcpy.edit.Snap("climate.shp",
                [["Habitat_Analysis.gdb/vegtype", "VERTEX", "30 Feet"],
                 ["Habitat_Analysis.gdb/vegtype", "EDGE", "20 Feet"]])

Snap example 2 (stand-alone script)

Snap the climate regions boundary to the vegetation layer boundary to ensure the common boundary is coincident.

# Description: Snap climate regions boundary to vegetation layer boundary
#              to ensure common boundary is coincident

# Import system modules
import arcpy

# Set environment settings
arcpy.env.workspace = "C:/data"

# Make backup copy of climate regions feature class, since modification with
# the Editing tools below is permanent.
climate = "climate.shp"
climateBackup = "C:/output/Output.gdb/climateBackup"
arcpy.management.CopyFeatures(climate, climateBackup)

# Densify climate regions feature class to ensure there are enough vertices
# to match detail of vegetation layer when layers are snapped.
arcpy.edit.Densify(climate, "DISTANCE", "10 Feet")

# Snap climate regions feature class to  vegetation layer vertices and edge.
veg = "Habitat_Analysis.gdb/vegtype"

# First, snap climate region vertices to the nearest vegetation layer vertex
# within 30 feet.
snapEnv1 = [veg, "VERTEX", "30 Feet"]

# Second, snap climate region vertices to the nearest vegetation layer edge
# within 20 feet.
snapEnv2 = [veg, "EDGE", "20 Feet"]
arcpy.edit.Snap(climate, [snapEnv1, snapEnv2])

Environments

Extent, Current Workspace
